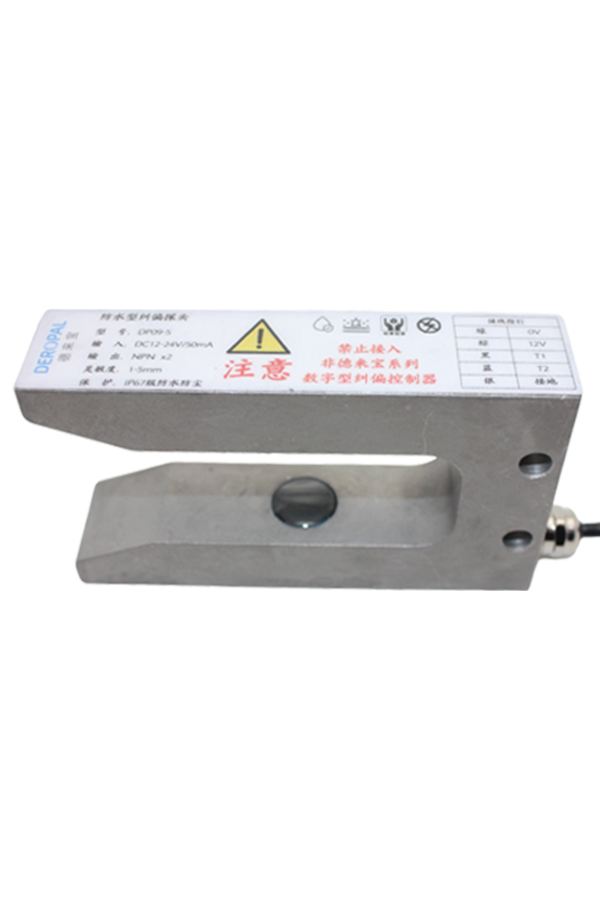

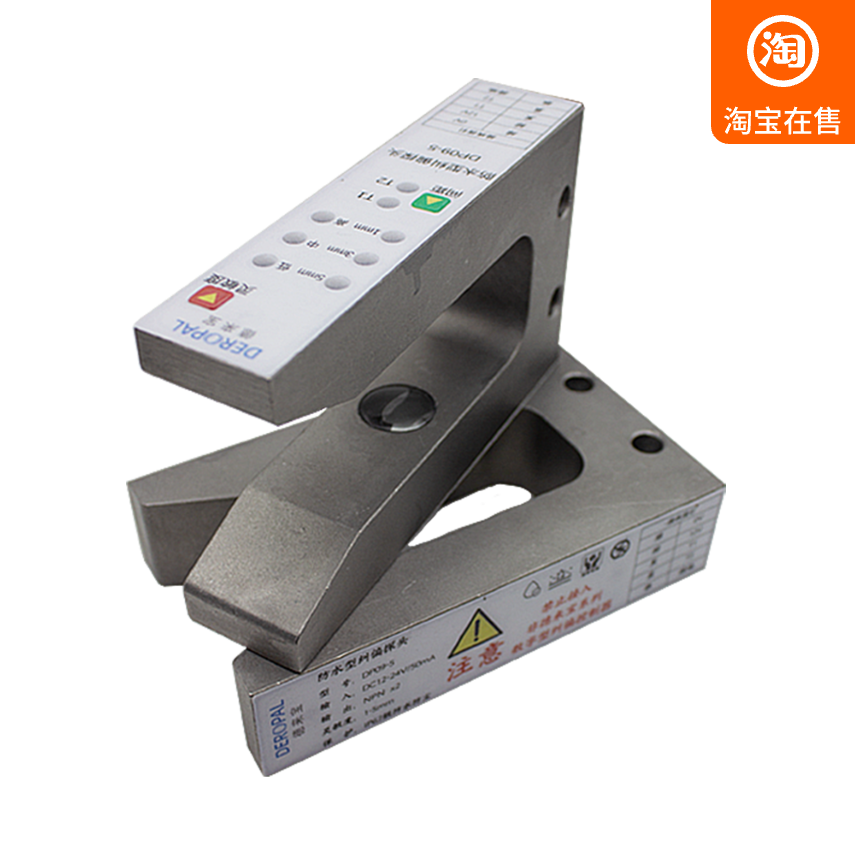

Edge Sensor

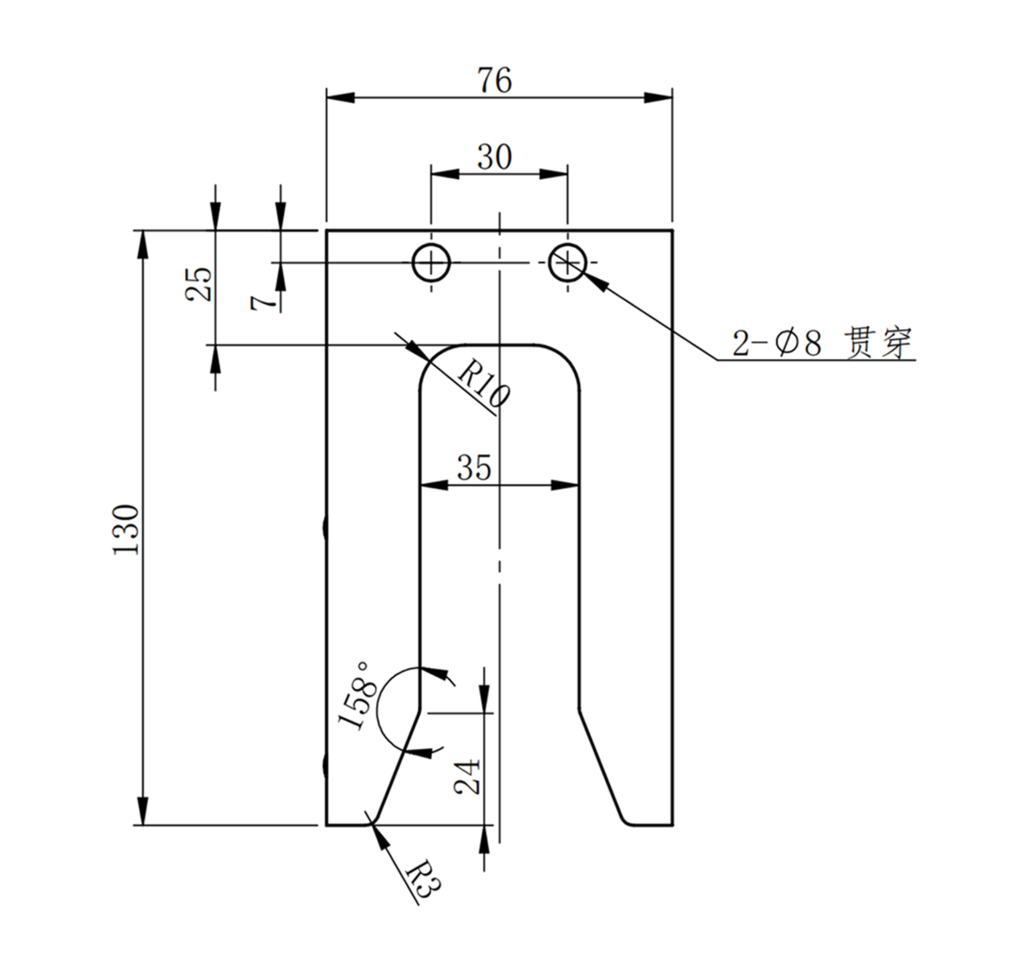

Depth 30mm  |  Width 76mm  | Height 130mm

Made for textile machines, this tough sensor finds fabric edges perfectly every time. The aluminum body stands up to factory conditions, while adjustable settings handle any material.

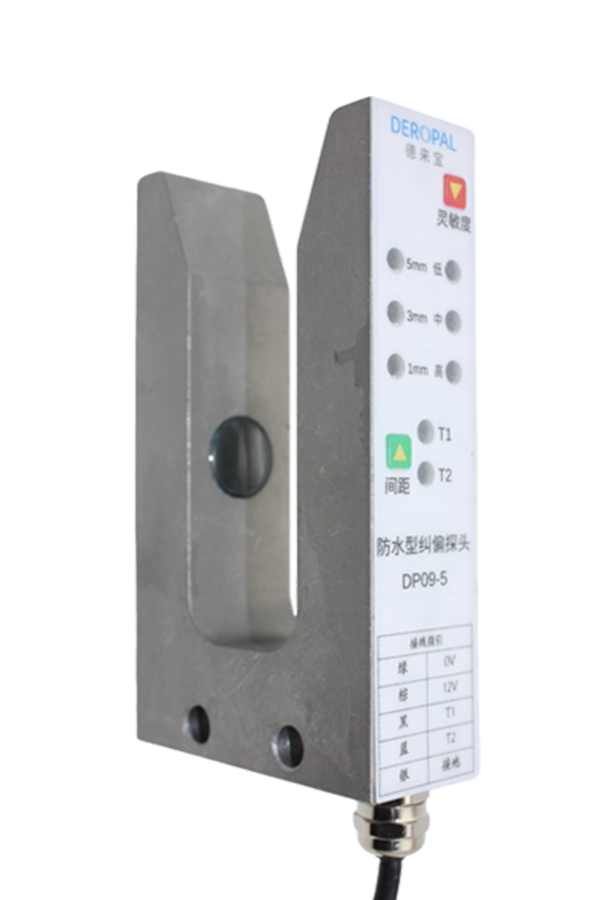

Control Panel
Backplane

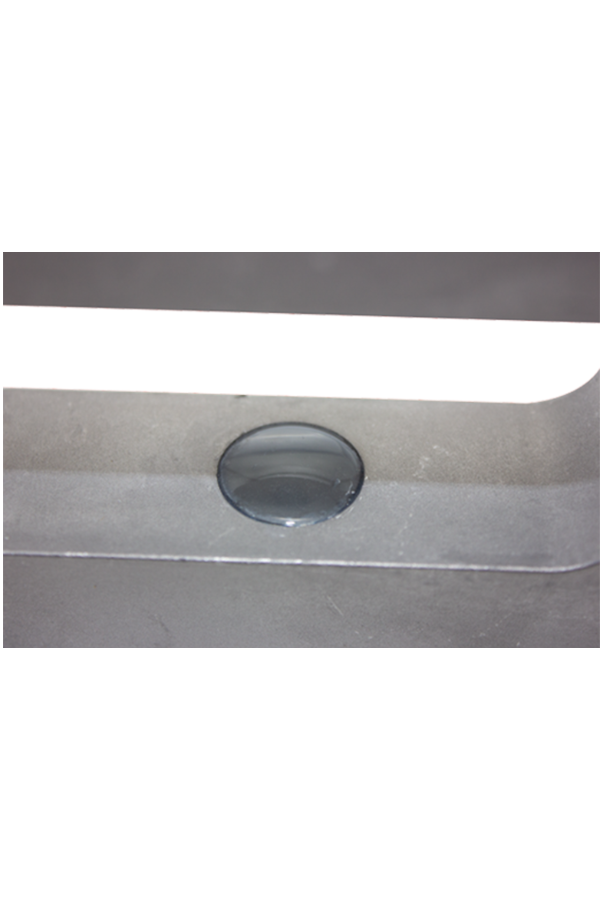

Dual-IR Optical

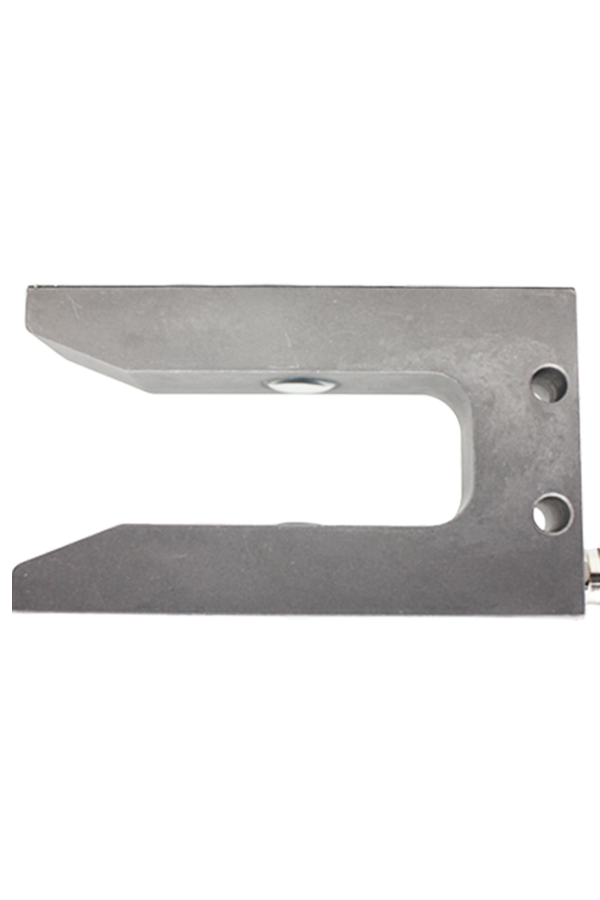

U-Shaped Frame

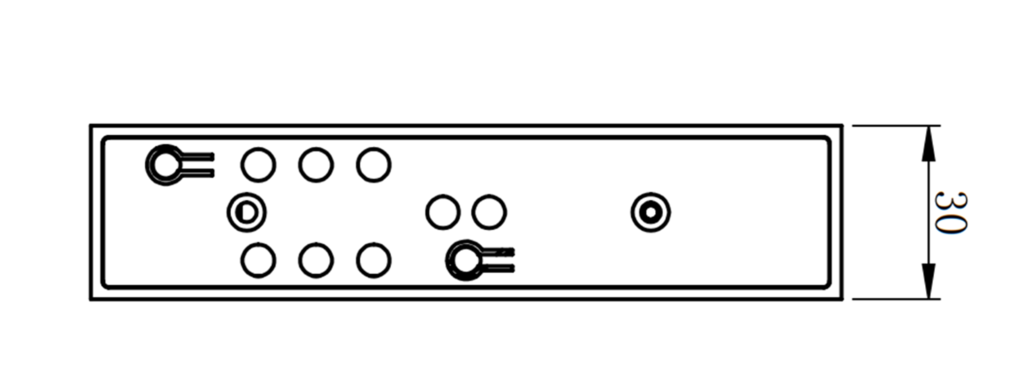

Front Elevation View

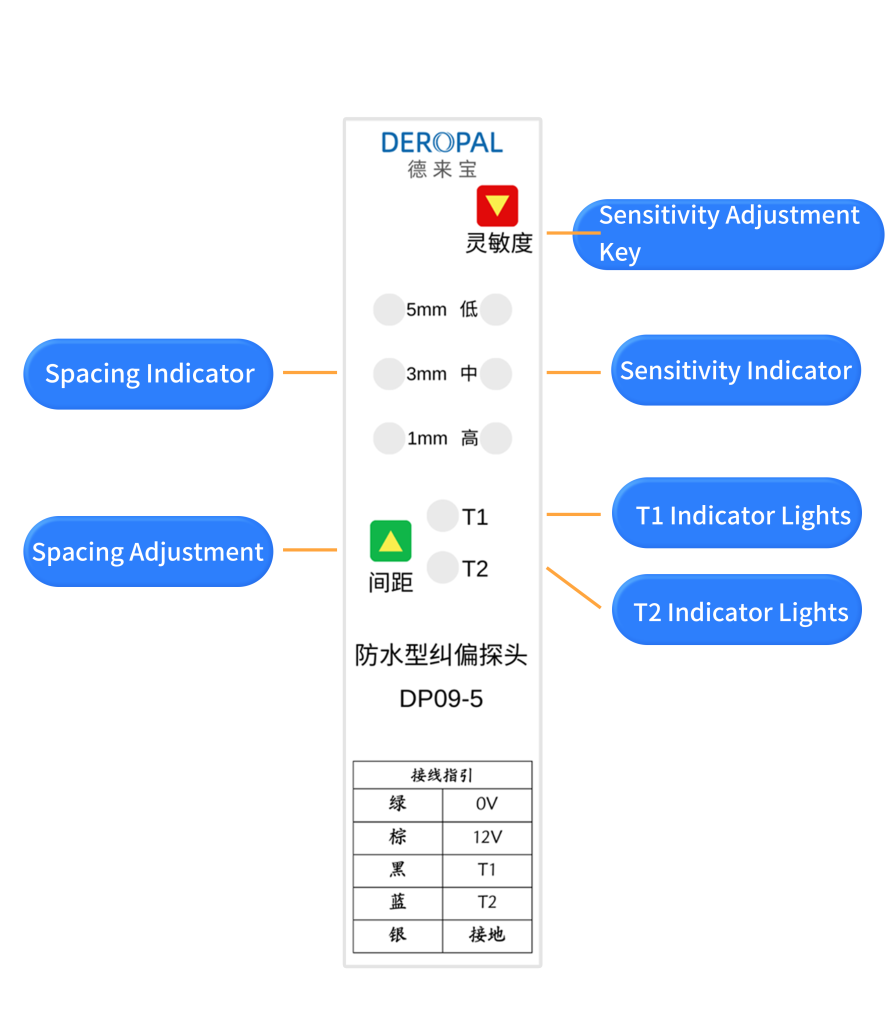

control panel diagram

Technical Parameters



Model

DP09-5

Input

DC12-24V/50mA

Output

NPN  ✖️2

Sensitivity

1-5mm

Protection

IP67 waterproof/dustproof

Wiring Guide

(Cable length: 180cm, customizable as needed)

Green

0V

Brown

12V

Black

T1

Silver

T2

Ground

Important Notice:Do not connect to non-Derancourt series digital edge guides!
