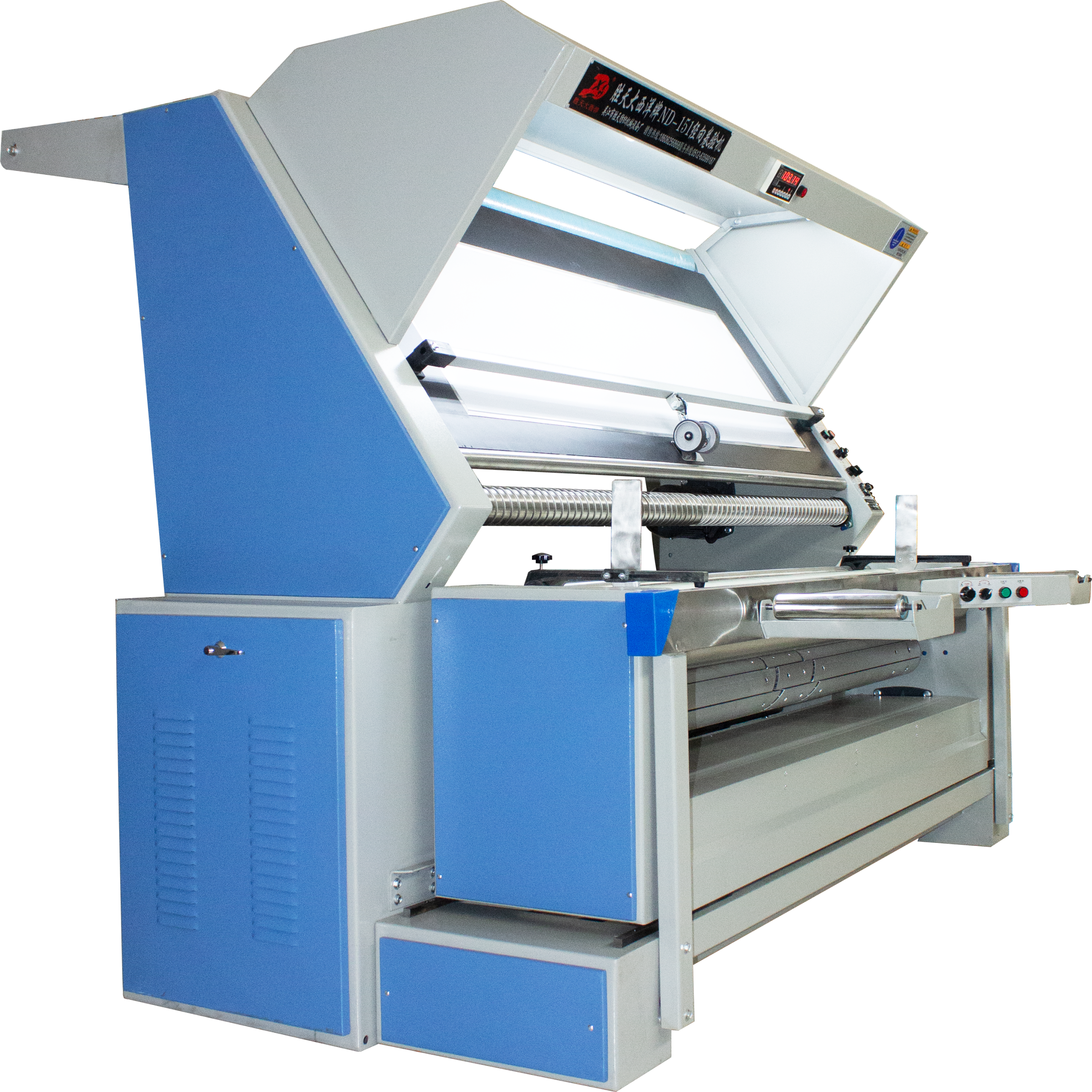

ND151-Radial Rolling & Inspection Machine
Depth 1900mm ｜ Width 2650mm ｜ Height 1940mm
The machine adopts a combination of wear-resistant silicone rollers and stainless steel rollers, with an infrared hydraulic edge-guiding system ensuring fabric smoothness. The dual-frequency drive enhances operational efficiency, while a 750W high-power motor delivers robust performance. Featuring smart communication capabilities, this system is specifically designed for precision processing of high-quality fabrics.

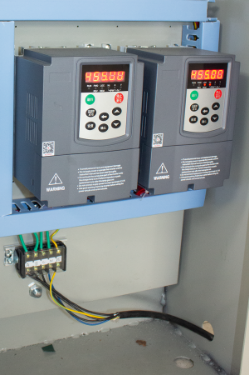

Dual Frequency Conversion Drive)
Communication Meter
Edge Sensor
Expander Roller
Silicone Roller、Textured Rubber Roller
Textured Rubber Roller
Gear Motor
Control Panel
Edge Misalignment Control
Adjustable Edge Misalignment System (Reduction Motor + Linkage)
LED Starry Light Bar
Dimmable LED Light Bar with Diffused Multi-Point Backlight
Stainless Steel Light Box
Waterproof & Rustproof Stainless Steel Construction
Silicone Top Roller
Wear-Resistant & Anti-Slip Silicone
Integrated Fabric Cutter
220V/250W High-Speed Brushless Circular Knife Motor
Weighing Platform
100KG Capacity / 0.05KG Precision Integrated Weighing Platform
Stainless Steel Basket
Waterproof, Rustproof, and Durable Stainless Steel Material
2.2Kw Motor
High Torque Three-Phase Asynchronous Motor
Machine Specifications
Operating Voltage
380V E*E (A. B. C. N. PE) /50HZ/3kw
Top Roller
φ114mm rough-surface rubber roller
Main Roller
φ160mm Wear-Resistant Silicone Roller / φ160mm Stainless Steel Roller
Dual Frequency Conversion Speed Regulation
1.5kW Closed-Loop Vector Frequency Drive; Adjustable Tension
Machine Speed
0-100m/min; Acceleration Time 5 sec; Deceleration Time 3 sec
Electronic Length Counter
Meter/Yard switchable；Auto-stop at preset length；Power-off memory；RS485 communication
Automatic Error Correction
2.5mm Aluminum Alloy Photoelectric Sensor/380mm StrokeHydraulic Transmission
Working Width
190/230/320/360CM Custom widths available
Button-Adjustment Zone
Left/Right
Function in manual edge alignment mode, controls the winding hydraulic trolley to move in the specified direction
Edge Alignment – Manual/Auto
Switches edge alignment mode; automatic alignment does not work during host machine reversing
Power – On/Off
Main power switch of the machine
Opening – On/Off
Switch for the wire opening roller under the inspection table
Backlight – On/Off
Switch for the backlight panel illumination
Tension
Adjusts the tightness of the fabric roll
Button – Inspection Table
Host Speed – Fast/Slow
Adjusts the operating speed of the machine
Host – Reverse/Forward
Switches between winding and unwinding modes
Host On
Enables the motor, allowing speed adjustment
Host Off
Disables the motor, triggering brake shutdown
