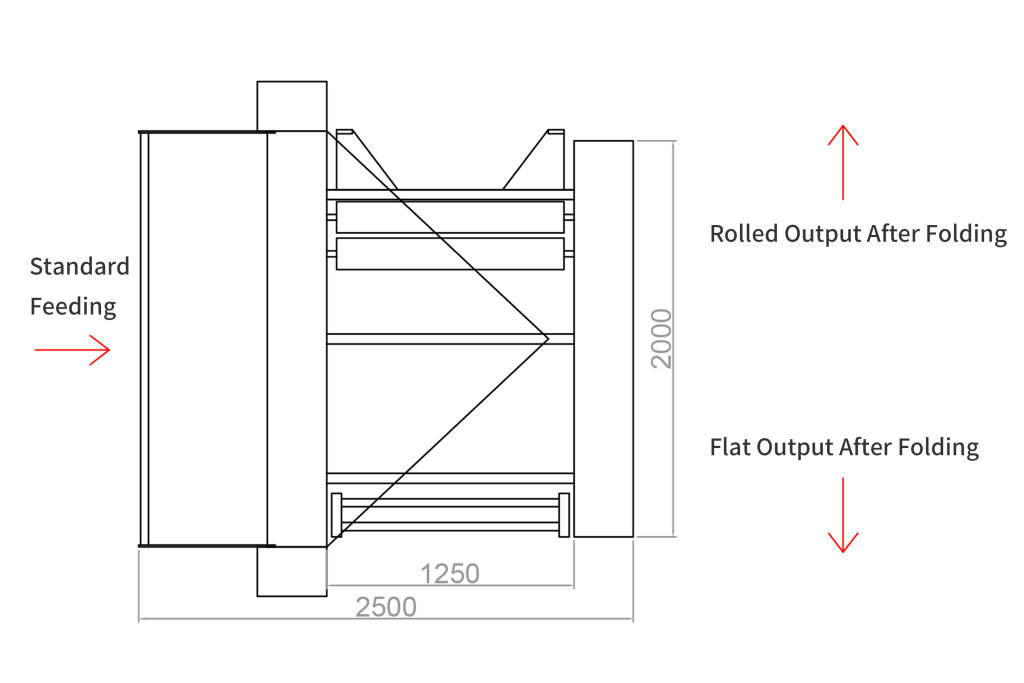

Depth 2080mm | Width 2650mm | Height 2000mm
This versatile machine handles both flat and rolled fabrics with ease, featuring stepless speed adjustment for precise control. The advanced photoelectric-hydraulic system with edge suction ensures perfectly aligned folds every time. Its sturdy welded construction guarantees stable high-speed operation, significantly boosting your productivity.
Machine Parameters
Applicable Width
1800mm~3600mm (customizable)
Max Roll Diameter
≤500mm
Inspection Speed
0-100mm/min
Edge Alignment Type
Edge suction device
Alignment Accuracy
±0.3mm
Measurement Error
≤0.3%
Tension Control Range
0~400N
Main Motor Power
2.2kw
Weight
1000kg(Weight increases proportionally with working width)
Dimensions (L×W×H)
L✖️W✖️H 2600mm✖️2600mm✖️2000 ; 4000mm✖️2100mm✖️2300
